CD_PolyhedralEBUtils.H File Reference

Declaration of the cell topology and polygon geometry the polyhedral cut cells are built from. More...

#include <RealVect.H>
#include <CD_CutCellSurface.H>
#include <CD_NamespaceHeader.H>
#include <CD_NamespaceFooter.H>
#include <CD_PolyhedralEBUtilsImplem.H>

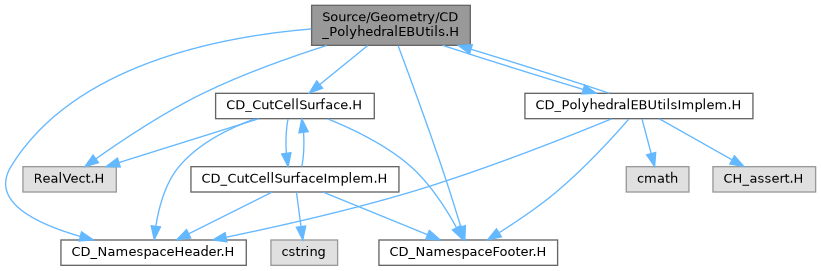

Include dependency graph for CD_PolyhedralEBUtils.H:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Namespaces
namespace	PolyhedralEB::detail
	Cell topology and polygon geometry the cut cell classes are assembled from.

Functions
bool	PolyhedralEB::isFluid (const Real a_value) noexcept
	Which side of the interface a value lies on.
int	PolyhedralEB::detail::edgeDirection (const int a_edge) noexcept
	Direction a cell edge runs along.
void	PolyhedralEB::detail::edgeOrigin (const int a_edge, int a_offset[SpaceDim]) noexcept
	Corner offsets of a cell edge's low end.
void	PolyhedralEB::detail::edgeCorners (const int a_edge, int &a_lo, int &a_hi) noexcept
	The corners a cell edge joins, low end first.
RealVect	PolyhedralEB::detail::cornerPosition (const int a_corner) noexcept
	Position of a cell corner in the cell's own frame.
void	PolyhedralEB::detail::faceCorners (const int a_dir, const int a_side, int a_corner[1<<(SpaceDim - 1)]) noexcept
	The corners of a cell face, in circuit order around the face.
int	PolyhedralEB::detail::edgeIndex (const int a_dir, const int a_offset[SpaceDim]) noexcept
	Index of the edge running along a_dir whose low corner has the given offsets.
RealVect	PolyhedralEB::detail::crossingPosition (const CutCellSurface &a_surface, const int a_edge, const Real a_tolerance) noexcept
	Position of an edge crossing in the cell's own frame.
void	PolyhedralEB::detail::faceEdges (const int a_dir, const int a_side, int a_edge[4]) noexcept
	The edges of a cell face, edge i joining face corners i and i+1.
void	PolyhedralEB::detail::polygonMoments (const RealVect *a_vertex, const int a_num, Real &a_area, RealVect &a_vector, RealVect &a_centroid) noexcept
	Area vector, area and centroid of a planar polygon given in circuit order.
int	PolyhedralEB::detail::facePairs (const int a_dir, const int a_side, const CutCellSurface &a_surface, int a_pair[2][2]) noexcept
	The chords on a cell face, each an unordered pair of edge indices.
int	PolyhedralEB::detail::crossingLoops (const CutCellSurface &a_surface, int a_loop[CutCellSurface::s_numEdges], int a_start[CutCellSurface::s_numEdges+1]) noexcept
	Order the crossings into closed loops, or fail if they do not form clean cycles.
bool	PolyhedralEB::detail::sameVertex (const RealVect &a_a, const RealVect &a_b) noexcept
	Whether two positions are the same vertex.

Variables
constexpr int	PolyhedralEB::detail::s_transverse [3][2] = {{1, 2}, {0, 2}, {0, 1}}
	The two directions transverse to each coordinate direction, in increasing order.
constexpr Real	PolyhedralEB::detail::s_weldTolerance = 1.0E-10
	Distance within which two vertices are taken to be the same one.

Detailed Description

Declaration of the cell topology and polygon geometry the polyhedral cut cells are built from.

Author

Robert Marskar

Function Documentation

isFluid()

bool PolyhedralEB::isFluid ( const Real  a_value )

inlinenoexcept

Which side of the interface a value lies on.

One predicate for corners and crossings alike: negative is fluid, and anything else, an exact zero of either sign included, is solid. GeometryShop reads an exact zero by its sign bit, which a negated distance function turns over, and then rescues the regular cell that leaves beside a covered one by looking at its neighbour. A cell here is classified from its own corners alone, so the zero has to fall on one side by rule: on the solid side, so that a fluid cell whose face lies in the interface is cut with that face as its interface, and the cell on the other side is covered.

Parameters

[in]

a_value

Implicit function value.

Returns

True on the fluid side.
