CD_ParticleLoops.H File Reference

Declaration of a namespace for SIMD-decorated loops over SoA particles. More...

#include <cstddef>
#include <CD_Decorations.H>
#include <CD_ParticleSoA.H>
#include <CD_NamespaceHeader.H>
#include <CD_NamespaceFooter.H>

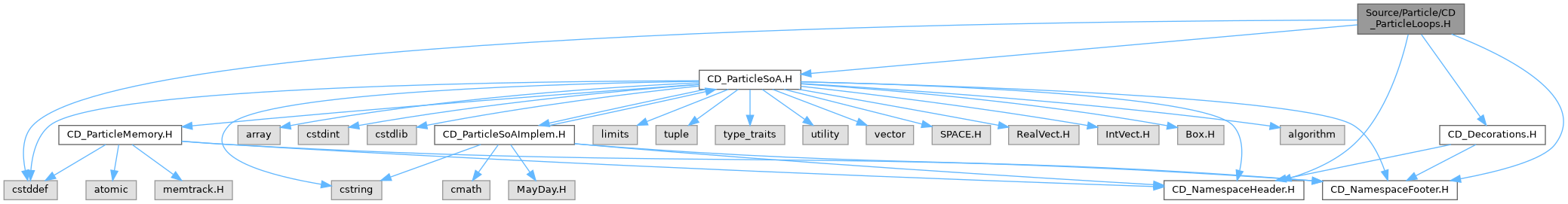

Include dependency graph for CD_ParticleLoops.H:

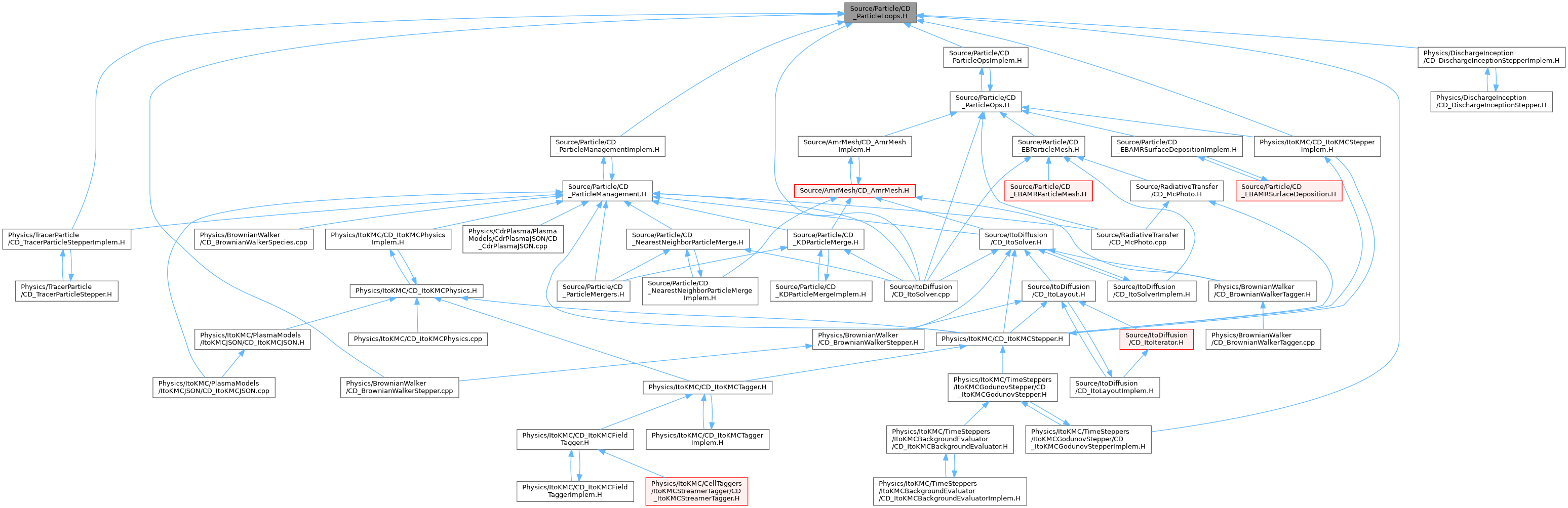

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Namespaces
namespace	ParticleLoops
	Namespace for SIMD-decorated loops over SoA particles (particle analogue of BoxLoops).

Functions
template<typename P , typename Traits , typename Functor >
ALWAYS_INLINE void	ParticleLoops::loop (const ParticleSoA< P, Traits > &a_soa, Functor &&a_kernel)
	Launch a kernel over every particle in a ParticleSoA, decorating the loop with CD_PRAGMA_SIMD.
template<typename P , typename Traits , typename T , typename Functor >
ALWAYS_INLINE T	ParticleLoops::reduce (const ParticleSoA< P, Traits > &a_soa, T a_initial, Functor &&a_kernel)
	Fold a kernel over every particle in a ParticleSoA, accumulating a reduction value.

Detailed Description

Declaration of a namespace for SIMD-decorated loops over SoA particles.

Author

Robert Marskar

ParticleLoops is the particle analogue of BoxLoops: it provides loop overloads that iterate over the particles of a ParticleSoA and decorate the inner loop with CD_PRAGMA_SIMD, so elementwise per-particle kernels (hopefully) auto-vectorize. This mirrors BoxLoops exactly, with the cell index replaced by the particle index:

// column pointers captured once, OUTSIDE the loop
ParticleReal*       sigma = soa.column<&P::conductivity>(); // payload column -> ParticleReal*
const double*       w     = soa.weightColumn();             // weight is always double
const ParticleReal* mu    = soa.column<&P::mobility>();     // payload column

ParticleLoops::loop(soa, [&](std::size_t i) { sigma[i] = w[i] * mu[i]; });

Why this exists

CD_PRAGMA_SIMD (GCC ivdep / clang vectorize(enable)) tells the compiler to ignore assumed loop-carried/aliasing dependencies, so the kernel vectorizes without the caller having to launder column pointers through __restrict, and without the compiler emitting runtime aliasing checks ("loop versioning"). ALWAYS_INLINE guarantees the kernel is inlined into the loop body.

Contract

• The kernel takes the particle index: (std::size_t i). Capture the column references/pointers ONCE before the loop (as above) – do not call soa.column<>() inside the kernel.
• Elementwise read/transform ONLY. Do NOT append(), remove(), or resize() the container inside the loop – the trip count is fixed and such mutation is a data hazard. Structural changes belong in ordinary index loops.
• loop() is not for reductions. ivdep does not guarantee a correct/vectorized reduction; use the reduce() overload, which folds the accumulator sequentially (no SIMD pragma) and is correct for sums/min/max.
• This is the INNER (per-patch, per-particle) loop. Outer OpenMP-over-patches parallelism is separate, exactly as BoxLoops sits inside the omp-over-boxes region.

Note

As in CD_Decorations.H, CD_PRAGMA_SIMD is disabled in debug builds (when NDEBUG is not defined); the loop is then an ordinary correct loop.
